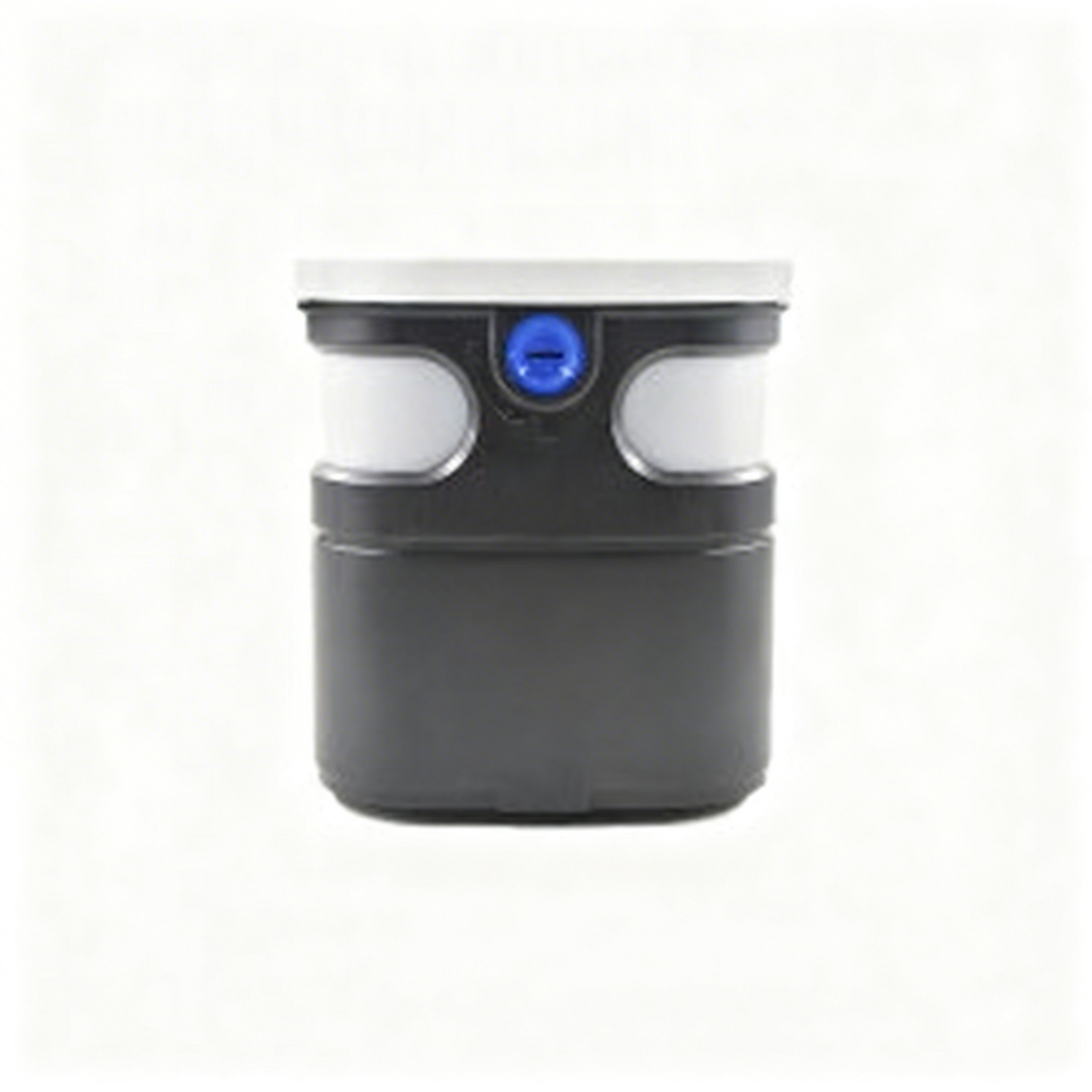

Optex PIR BXS Shield Wireless Outdoor Anti-Masking excl Tx and Battery | BXS-RAM(W)

The OPTEX BXS‑RAM(W) is a wireless‑ready, bi‑colour outdoor curtain PIR detector featuring quad‑PIR technology with two independently adjustable detection zones per side, providing up to 12 m coverage on each side for a total of 24 m perimeter protection. Equipped with digital anti‑masking, the unit detects attempts to cover, spray, or block the sensor face, ensuring reliable tamper protection in high‑risk outdoor environments. Its advanced SMDA logic (Super Multidimensional Analysis) improves immunity to environmental disturbances such as vegetation movement, temperature fluctuations, and small animals, delivering highly stable outdoor detection. The detector allows fully independent left/right sensitivity and range adjustments (2.5 m to 12 m per side) and operates in extreme temperatures ranging from –30°C to +60°C, supported by an IP55‑rated weather‑resistant housing. Designed for universal integration, the BXS‑RAM(W) accepts most third‑party wireless transmitters, enabling easy connection to existing alarm systems while maintaining durability, precision, and dependable boundary protection.
